Product description

The KW-60-750 series is a small lifting device.

It is mainly used in the basement below the municipal sewage pipe.

Suitable for discharge of domestic sewage from basement toilet, bar sink, laundry room, air-conditioning condensate, etc. Power supply: 220V/380V

KW series box is made of corrosion-resistant and environment-friendly polyethylene PE material, which is airtight, durable, lightweight and beautiful. The box volume is about 60L, and the multi-directional optional vertical and horizontal water inlet is reserved for easy installation

Performance parameter

The water pump is a non-blocking vortex impeller with a power of 0.75kw

Pump body material HT250, SUS304

Vortex impeller material HT250 pump shaft material SUS410

Maximum overcurrent diameter 50mm

Maximum startup times of water pump 60 times/hour

The cable length between the standard controller and the water pump/float is 5 meters

DN80 check valve included

Outlet pipe diameter: DN80 Vertical outlet (variable diameter)

Starting mode: pressure/float double liquid level control, original double protection

Waterproof grade of the whole machine: IP68 (excluding control box)

Controller characteristics

Water pump no-load protection, can set delay start/stop pump overload protection, high anti-interference performance

High alarm forced start function, simple operation manual/automatic switch function, automatic inspection function

Liquid crystal text display

Working current display

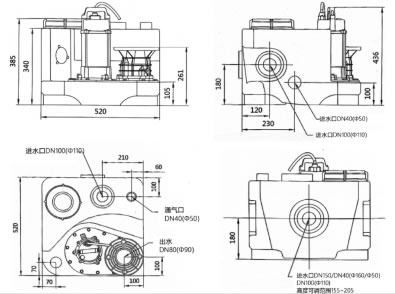

Product size drawing
