Product description

KW-150-2200 series is mainly used to discharge large villas, multiple toilets

Domestic sewage produced in public places such as shower rooms and small shopping malls.

Dual pump system, alternate operation of the two pumps under normal circumstances, two pumps can be started at the same time when the flow peak.

If one of the pumps fails, the system automatically switches to the single pump operation mode

Shield the faulty pump and alarm display,

Greatly improve the service life and maintenance cost of equipment. Power supply: 380v/220V.

KW series box material for corrosion resistance and environmental protection

Polyethylene PE material, good tightness, durable, the box volume is about 150L, reserved for multi-directional optional vertical and horizontal water inlet, easy to install.

Performance parameter

The water pump is a non-blocking vortex impeller with a power of 2,2kw (220V/380V).

Pump body material HT250, SUS304

Vortex impeller material HT250 shaft material SUS410

Maximum overcurrent diameter 60mm

The maximum startup times of the water pump is 120/ h

The cable length between the standard controller and the water pump/float is 5 meters

DN80 check valve included

Outlet Pipe diameter DN80 Vertical outlet (variable diameter)

Starting mode: pressure/float double liquid level control, original double protection

Waterproof grade of the whole machine: IP68 (excluding control box)

Anti-floating fixed mounting (anchor bolt)

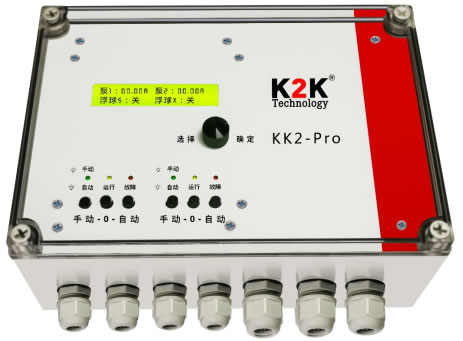

Controller characteristics

Water pump no-load protection, can set delay start stop

Pump overload protection, high anti-interference performance

High alarm strong start power, simple operation

Manual/automatic switch function, automatic inspection function

Phase sequence and missing phase alarm

Liquid crystal text display

Working current display
