- Small and flexible
- Plug and play
- Float control
- Floating high liquid level alarm
- Pump overload protection
- Audible alarm
- Simple operation
- With waterproof connector simple wiring
The serial number
project
Technical specifications
unit
note
1
Rated voltage
200-240/50Hz
Vac
2
Maximum input voltage
264
3
Rated power rating
2.2
KW
4
Rated current current
0-10
A
5
Pump overload protector
3~10
Be optional
6
IP level
IP44
7
MTBF
20000
h
8
Operating temperature
-20 to +60
℃
9
Case:
Polycarbonate ester
10
Size of controller:
65x 140 x 55 mm( W x H x H)
mm
No plug height included
11
Cable aperture
1x ?6~?10, 1x?4~?8
Wiring diagram (with float control)
M23 4-core waterproof connector
M15? 2-core waterproof connector
Serial number
Liquid level float
Pump fire line
Water pump neutral line
L
High alarm float
Water pump ground wire
N
KK1- Intelligent Single pump controller series Air pressure controller (220V) Float controller (220V)
KK1-Pro intelligent single pump controller series Air pressure controller (220V) Float controller (220V) Air pressure controller (380V) Float controller (380V)
KK2-Pro intelligent dual pump controller series Air pressure controller (220V) Air pressure controller (380V) Two float controller (220V) Two float controller (380V) Three float controller (220V) Three float controller (380V)
Intelligent flood point alarm NB Float control (movement) NB Float control (fixed power supply) NB Pneumatic control (fixed power supply
Protective industrial plug Push-button protection industrial plug Swivel handle protection industrial plug Easy plug motor controller
Level controller series MS1 Float switch M2 float switch K1 float switch MS1-2G float switch Electronic explosion-proof MS1 float swi MS1C float switch MS1 ACS float switch M2-2G float switch N1 Float switch N1 pro float switch N1 pro-4G float switch KR1 float switch Electronic explosion-proof KR1 Ex float LF-1 liquid level transmitter NCT21 level transmitter
Sewage lifting series KW-20-750 KW-60-750 KW-150-2200

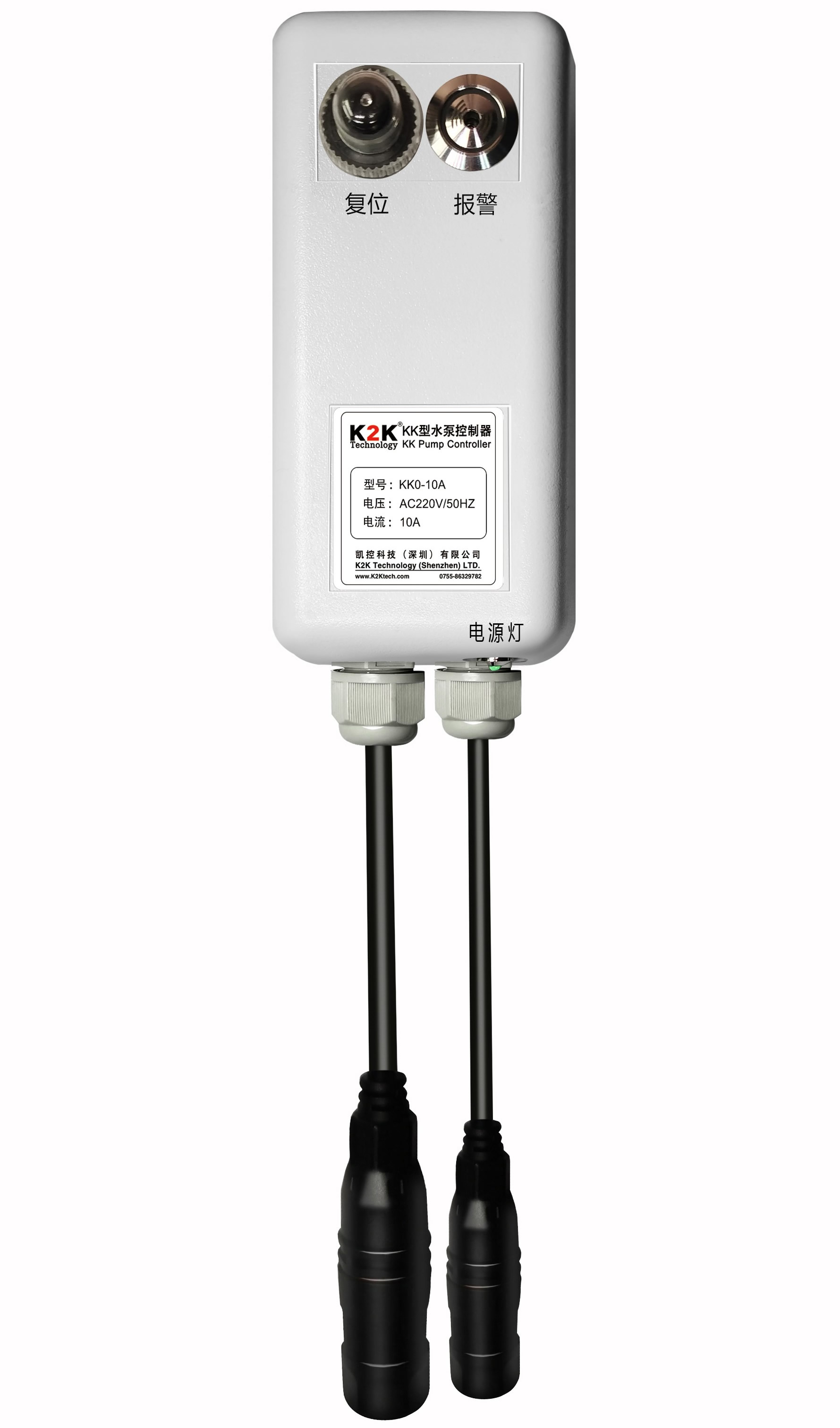

KK0 - Simple single pump controller series
The pump has its own float
1.Function
- Small and flexible
- Plug and play
- Float control
- Floating high liquid level alarm
- Pump overload protection
- Audible alarm
- Simple operation
- With waterproof connector simple wiring
2.Parameters
The serial number
project
Technical specifications
unit
note
1
Rated voltage
200-240/50Hz
Vac
2
Maximum input voltage
264
Vac
3
Rated power rating
2.2
KW
4
Rated current current
0-10
A
5
Pump overload protector
3~10
A
Be optional
6
IP level
IP44
7
MTBF
20000
h
8
Operating temperature
-20 to +60
℃
9
Case:
Polycarbonate ester
10
Size of controller:
65x 140 x 55 mm
( W x H x H)
mm
No plug height included
11
Cable aperture
1x ?6~?10, 1x?4~?8
3.Wiring method
Wiring diagram (with float control)
M23 4-core waterproof connector
M15? 2-core waterproof connector
Serial number
Serial number
1
Liquid level float
2
Liquid level float
Pump fire line
3
Water pump neutral line
L
High alarm float
4
Water pump ground wire
N
High alarm float
