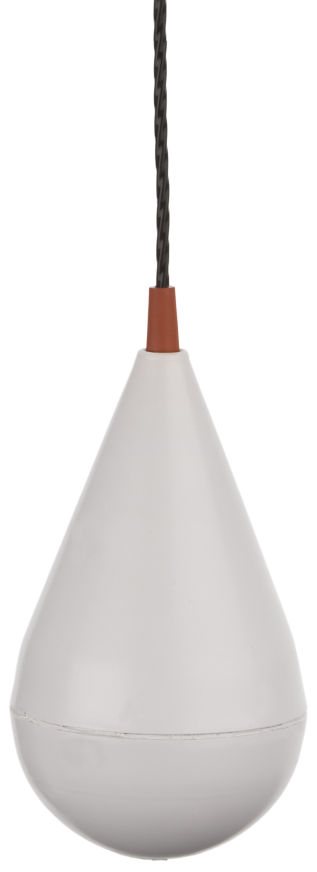

NIVA The MS1C float switch provides the ideal solution for level control of corrosive liquids, such as:
■ Chemical plant
■ Electroplating facility
■ purifier
NIVA MS1C float switch, chemically stable, can be used at 100℃. The Teflon wire can be used in strong solvents.
Niva float switch can be supplied with K2K control controller.
Use:
MS1 C Float ball switch can be used in corrosive solution at high temperature of 100℃.
Technical data:
Specific gravity: 0.95-1.05 or as required
Maximum temperature: 100℃
Switch capacity: 1mA / 4V – 5A / 250V *
Connecting phase Angle: 10°
Protected type: IP 68 / 2 bar
Protection level: Ⅱ
Cable section: 4 x 0.5 mm²
Height/Diameter: 180 / 100 mm
Shell material: polypropylene (PP)
Case color: Gray
Cable material: Teflon/FEP
Cable color: black
Wire seal: fluorine rubber
* Tiny switches with gold-plated contacts to turn on weak currents in electronic circuits
