Level controller series

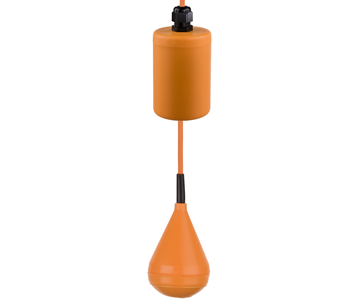

M2 float switch
Provides ideal solutions for liquid level control in narrow Spaces, such as:
■ Limited space
■ Long, narrow shafts
■ Small container
M2 is a float switch for drainage only. Due to its small size M2 float switch is suitable for use in medium with low content of blocky objects, and is especially suitable for use in small containers with limited space. M2 float is made of fine materials, which can withstand the corrosion of sewage containing soapy water, uric acid, seawater, dung water, oil, gasoline, diesel, caustic agent, alcohol, fruit acid and so on. Its operating temperature can reach 80℃.
Niva float switch can be supplied with K2K control controller.
Available cable weight (300g) : 40 00
Use:
Clean liquid and sewage free of solid particles.
Configure cable counterweights (optional) to stabilize switching points.
Technical data:
Specific gravity: 0.95-1.05
Maximum temperature: 80℃
switchCapacity: 1mA / 4V – 5A / 250V *
Switch Angle: 10°
Type of protection: IP 68 / 2 bar
Protection level: Ⅱ
Cable section: 3 x 0.5 mm²
Height/diameter: 90 / 60 mm
Shell material: Polypropylene（PP）
Shell color: orange
Cable material: SIL/TPE/PVC
Cable color: orange
